Archimate

The Townplanner can export the full town plan to an OpenExchange XML file. Requesting this export is as simple as adding 1 line to the main class of the town plan:

object WayneEnterprisesTownPlan extends EnterpriseArchitectureAsCode {
  implicit val enterprises: Enterprises = Enterprises()
  implicit val capabilities: BusinessCapabilities = BusinessCapabilities()
  implicit val actors: Actors = Actors()
  implicit val technologyRadar: Technologies = Technologies()
  implicit val buildingBlocks: BuildingBlocks = BuildingBlocks()
  implicit val systems: Systems = Systems()

  val views: Views = Views()

  diagrams()
  archimate()
  documents()
  website()
}

On line 12 of the town plan, the command archimate() results in the file output/assets/exports/openexchange.xml.

This XML file will also be added to the Enterprise page of the static website, if you choose to have that built.

The OpenExchange XML file can be imported in tools like Archi and Sparx EA.

Examples

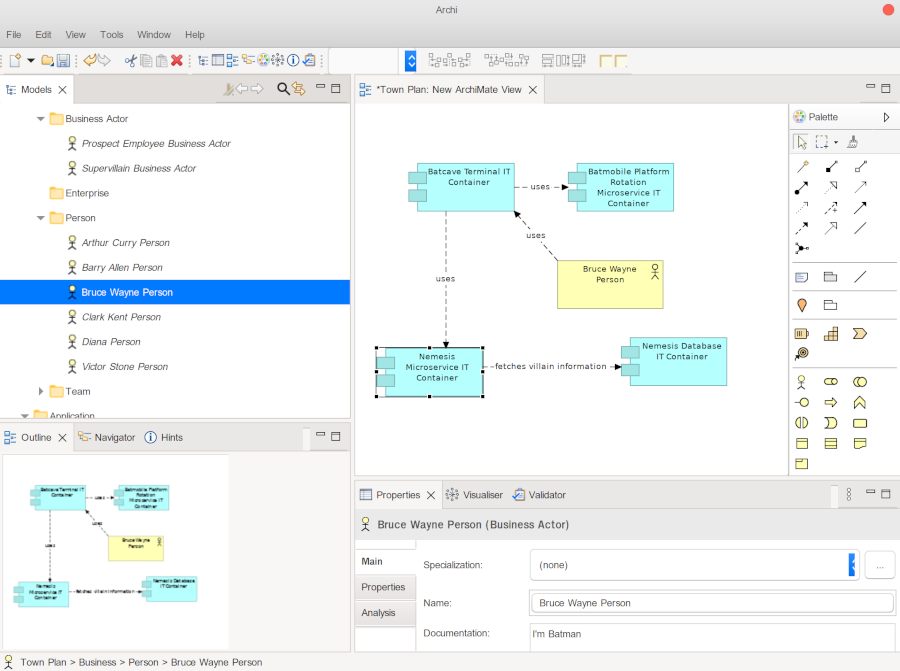

Imported in Archi
